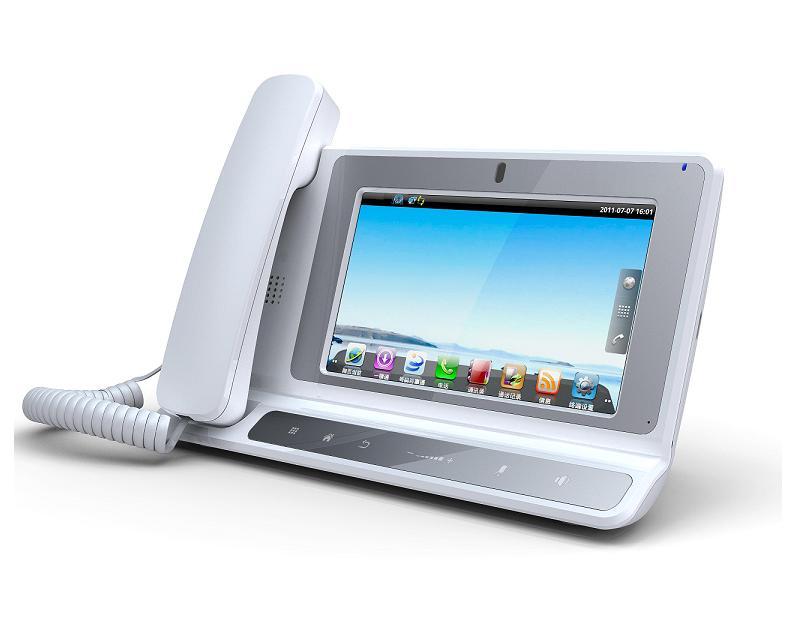

YD-S7 Android Video Phone
Products:
Hardware Specifications:
Item | Specifications | |
OS | Android2.2 | |
Hardware | Memory | 512MB |
Storage | 2G | |
Screen | 7" Resistive touch screen, 800 x 480 (Capacitive Option) | |
Camera | HD Camera | |
Interface | Internet | RJ45 × 2 10/100Mbps for LAN and PC |
WiFi 802.11b/g/n | ||
Others | USB 2.0 | |
Mini USB 2.0 | ||
SD card interface | ||
Multiplexes with 3.5mm earphone jack | ||
CVBS Output | ||
Compliant standards | Communication standard | SIP 2.0 |
Video standard | H.263, H.264 | |
Audio standard | G.711, G.729 | |
Network standards | TCP/IP, DHCP, PPPoE | |
Power | Adapter | Working voltage: 110/220V AC, 12 V and 2 A DC Working frequency: 50 Hz to 60 Hz |
Entire-device power consumption | <15W | |
Environmental parameters | Operating temperature | 0ºC~40ºC |
Humidity | 10%~80% | |
Minimum illumination | 10lux | |
Recommended illumination | >300lux | |
Packaging Detail | Media phone, Power Adapter, RJ45, Manual | |
Colour | White | |
Technical Specifications
Multimedia Features：
Local Media File Format: mp4,3gp,avi,flv,mkv,mov
Video Resolution: Supports up to 720p
Frame Rate: 30fps
Video Rate: 768Kbps~3Mbps
Audio Format: mp3,ogg,wav,mid
Image Format: jpeg,gif,png,bmp
Video/Audio Output：
CVBS Output
Sdandard: PAL,NTSC
Stereo Audio Output: (Multiplexes with 3.5mm earphone jack)
High Quality Camera：
HD camera
Rotating angle: Up to30°, down to 90°
Network Features:
Network Protocols: TCP/IP, DHCP, PPPoE, SIP 2.0
WAN/LAN: 2×RJ45、10/100M（LAN、PC）
WiFi: 802.11b/g/n
Entertainment features:
Internet radio
Digital Photo Frame
Instant Messenger: Skype/ MSN /QQ
External Interface:
SD card interface
USB 2.0 / USB OTG
Phone Features:
Network Interworking: IMS/NGN
Video Calling: D1
VoIP Calling
Mute
Caller ID Display
Recording a message
Volume Control
Hands-free mode
Configurable ring tone
Network clock synchronization
Local Phonebook Capacity: 2,000x4
3x500 call records
VoIP Speech Coding: G.711a、G.711u、G.729
Video Calling Standards: H.264、H.263
Network Management:
Network Management Protocol: TR069
Equipment Management
Set and query parameters
Device status query
Network Diagnostics
Online software upgrades
Environmental parameters:
Operating temperature: 0℃~40℃
Humidity: 10%~80%
Storage temperature: -40℃~70℃
Storage humidity: 10%~95%
Minimum illumination: 10lux
Recommended illumination: >300lux

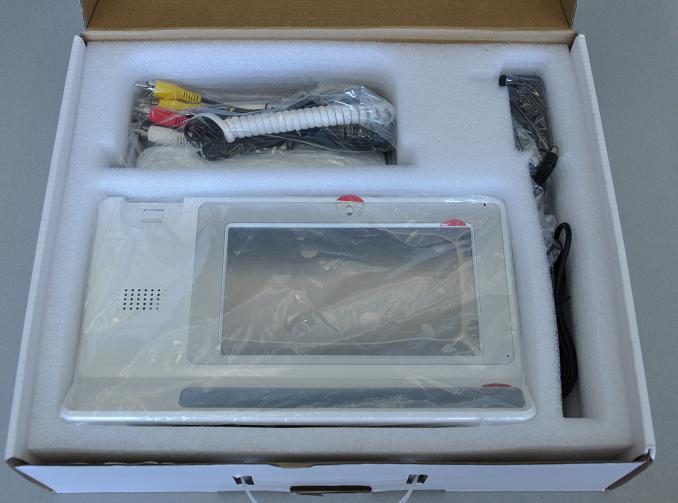

Package:
Items | Quantity |
YD-S7 video phone | 1 |
Adapter | 1 |
Handset | 1 |
Bracket | 1 |
RJ45 cable | 1 |
Handset cable | 1 |
Audio and video cables | 1 |
Manual | 1 |
